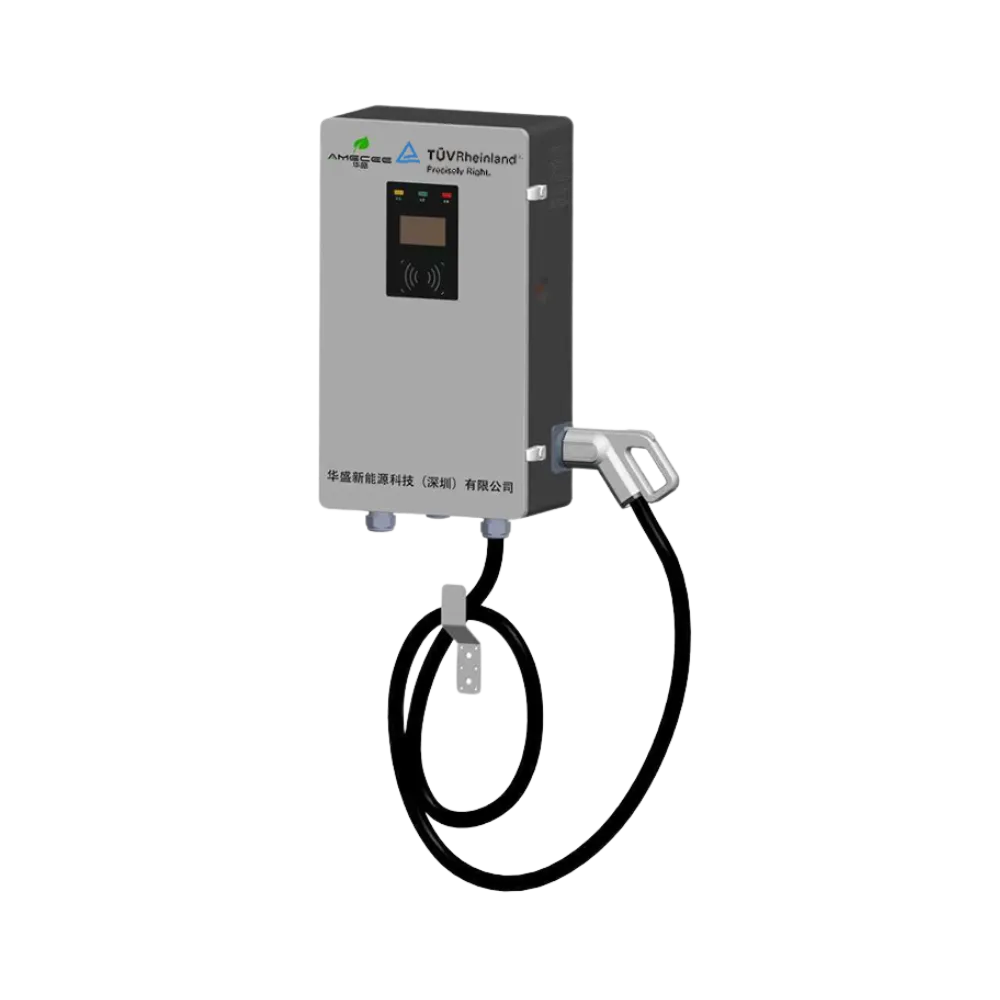

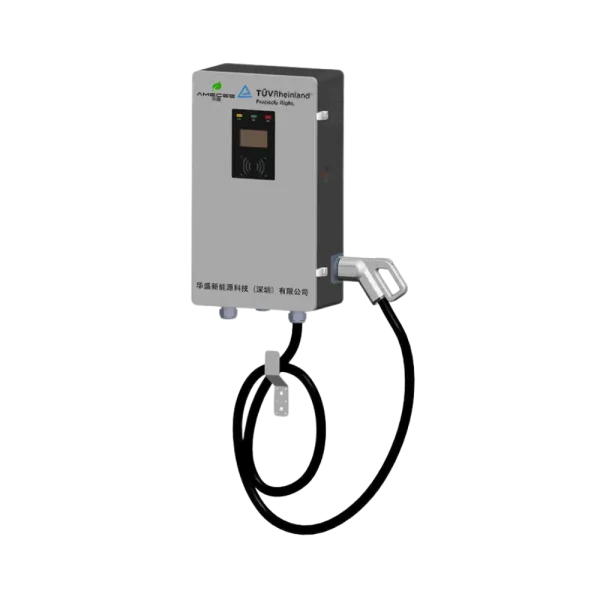

Wall-mounted DC Fast Charging 20KW/30KW/40KW

Wall-mounted DC Fast Charging 20KW/30KW/40KW

Highly compatible, intelligently connected, and safe EV charging system

This EV charging system integrates broad compatibility, intelligent connectivity, and comprehensive safety protection to meet the charging needs of mainstream vehicle models worldwide. Supporting Ethernet, 3G/4G, and Wi-Fi communication, it provides full protection against overvoltage, undervoltage, overcurrent, short circuits, ground faults, and leakage for safe and reliable operation.

Fully compatible with OCPP protocol platforms, it enables seamless cross-platform integration and remote management. Equipped with an LCD touchscreen and RFID module for intuitive operation, along with multi-standard charging ports and a wide voltage output range of 200V–1000V, it adapts easily to various applications, helping to build efficient, intelligent, and scalable charging networks.

Features

  • Universally applicable Adapted t o most electric vehicles.
  • Various communication With Ethernet, 3G/ 4G, WIFI Safety Protection Over voltage, Under voltage, Over current, Short circuit, Ground fault and leakage.
  • High inter-connectivity Fully supports the Open.
  • Charge Point Protocol, compatible with all platforms developed based on OCPP protocol Friendly.
  • Interface LCD touch screen, RFID reader module with high Cec iency 95%.
  • Multi-standard charging port combination CCS2, CHAdeMO, GB/T, CCS1 can be combined and customized.
  • High Voltage output Any car-wide voltage ranges from 200V – 1000V.
  • Intelligent operation We can compatible with various OCPP platform cnnections.

Parameters

Specification
ModelHS_WDC-20HS_WDC-30HS_WDC-40
Electrical Properties
AC InputInput RatingAC 400V±15% 3phAC 400V±15% 3phAC 400V±15% 3ph
AC Input connection3P+N+PE3P+N+PE3P+N+PE
AC Input Current3Ф33A3Ф50A3Ф66A
Frequency50/60Hz50/60Hz50/60Hz
Power Factor≥0.99≥0.99≥0.99
Efficiency≥95%≥95%≥95%
DC OutputOutput Voltage RangeDC200-1000VDC200-1000VDC200-1000V
Max.Output Current60A(system)100A(system)133A(system)
Max.Output PowerDC20KWDC30KWDC40KW
Voltage Accuracy≤±0.5%≤±0.5%≤±0.5%
Current Accuracy≤±1%≤±1%≤±1%
User Interfact & Control
Emergency Stop ButtomYes
Display7” LCD Touch Screen
User AuthenticationRFID, OCPP, QR Code, Passport, Application
Support LanguageEnglish or other languages are available upon request
Communication
ExternalEthernet, Wifi
InternalCAN, RS485, RS232
Environmental
Operating Temperature-30 ℃ ~ +50 ℃
Humidity<95% relative humidity, non-condensing
Altitude≤2000m(6000 feet)
Mechanical
Ingress ProtectionIP54
Enclosure ProtectionIK10
CoolingAir Forced

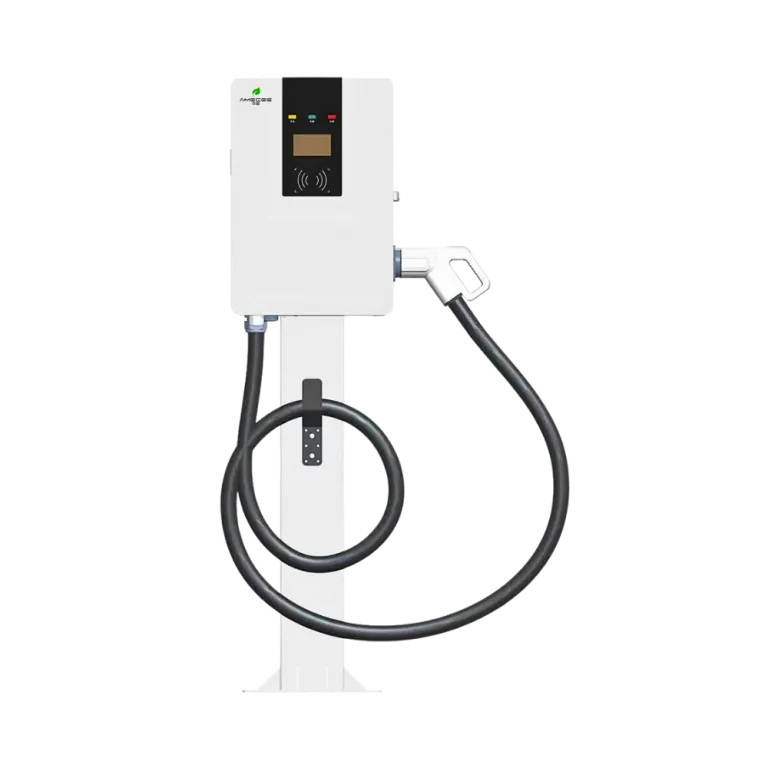

Installation MethodWall-mount / Stand-Pile
ProtectionOver current, Under Voltage, Over Voltage, Residual Current, Surge Protection, Short Circuit, Over Temperature, Ground Fault
Network Gateway4G
Payment MethodSCAN, POS Machine
Packing Details
Product Dimension650 * 410 * 160mm650 * 410 * 160mm650 * 410 * 160mm
Product Weight38 Kg43 Kg48 Kg
