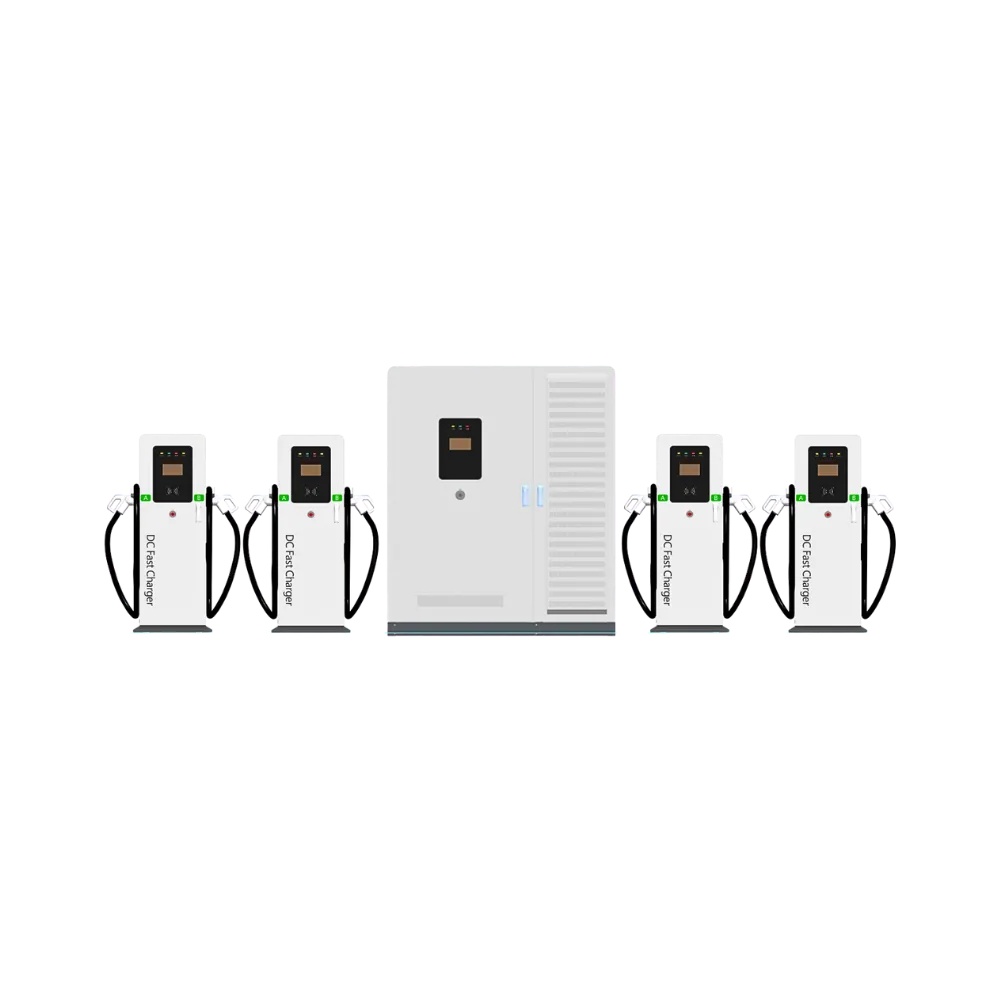

Split DC Super Fast Charging 400KW/800KW
CCS2

Split DC Super Fast Charging 400KW/800KW

Intelligent and efficient DC fast-charging system

This next-generation intelligent DC fast-charging system seamlessly combines high power output, low-noise operation, and smart management. With advanced liquid cooling technology and an independent power distribution design, it delivers stable, efficient charging while significantly reducing noise for a more comfortable user experience. Its flexible multi-standard interface ensures compatibility with major EV models worldwide, making it ideal for both urban public charging networks and high-demand highway service areas.

Equipped with real-time monitoring and dynamic load balancing, it optimizes energy distribution and reduces operational costs, offering a safe, efficient, and sustainable solution for the future of transportation energy infrastructure.

Features

High power output Equipped with high-power power supply cabinet, upgraded with liquid cooling, super-fast charging, greatly shorten the charging time.

Superior charging experience The power cabinet is placed independently rom the charging area, which greatly reduces noise pollution Easy installation The charging terminal is compact and easy to install.

Multi-standard charging port combination CCS2, CHAdeMO, GB/T, CCS1 can be combined and customized High voltage output ranges from 200V-1000V Any car-wide voltage.

Intelligent operation We can compatible with various OCPP platform.

Backstage monitoring Real-time monitoring of the EV Charging status.

Load balancing More effective connection to loading balancing.

Parameters

Specification
ModelHS_FSDC_360HS_FSDC_480
Electrical Properties
AC InputInput RatingAC 400V±15% 3phAC 400V±15% 3ph
AC Input connection3P+N+PE3P+N+PE
AC Input Current3Ф550A3Ф750A
Frequency50/60Hz50/60Hz
Power Factor≥0.99≥0.99
Efficiency≥95%≥95%
DC OutputOutput Voltage RangeDC200-1000VDC200-1000V
Max.Output Current250A(system)250A(system)
Max.Output PowerDC360KWDC480KW
Voltage Accuracy≤±0.5%≤±0.5%
Current Accuracy≤±1%≤±1%
User Interfact & Control
Emergency Stop ButtomYes
Display10” LCD Touch Screen
User AuthenticationRFID, OCPP, QR Code, Passport, Application
Support LanguageEnglish or other languages are available upon request
Communication
ExternalEthernet, Wifi
InternalCAN, RS485, RS232
Environmental
Operating Temperature-30 ℃ ~ +50 ℃
Humidity<95% relative humidity, non-condensing
Altitude≤2000m(6000 feet)
Mechanical
Ingress ProtectionIP54
Enclosure ProtectionIK10
CoolingAir Forced
Installation MethodFloor-Mounted
ProtectionOver current, Under Voltage, Over Voltage, Residual Current, Surge Protection,Short Circuit, Over Temperature, Ground Fault
Network Gateway4G
Payment MethodSCAN, POS Machine
Packing Details
Product Dimension700 * 1700 * 530mm700 * 1700 * 530mm
Product Weight240 Kg280 Kg
