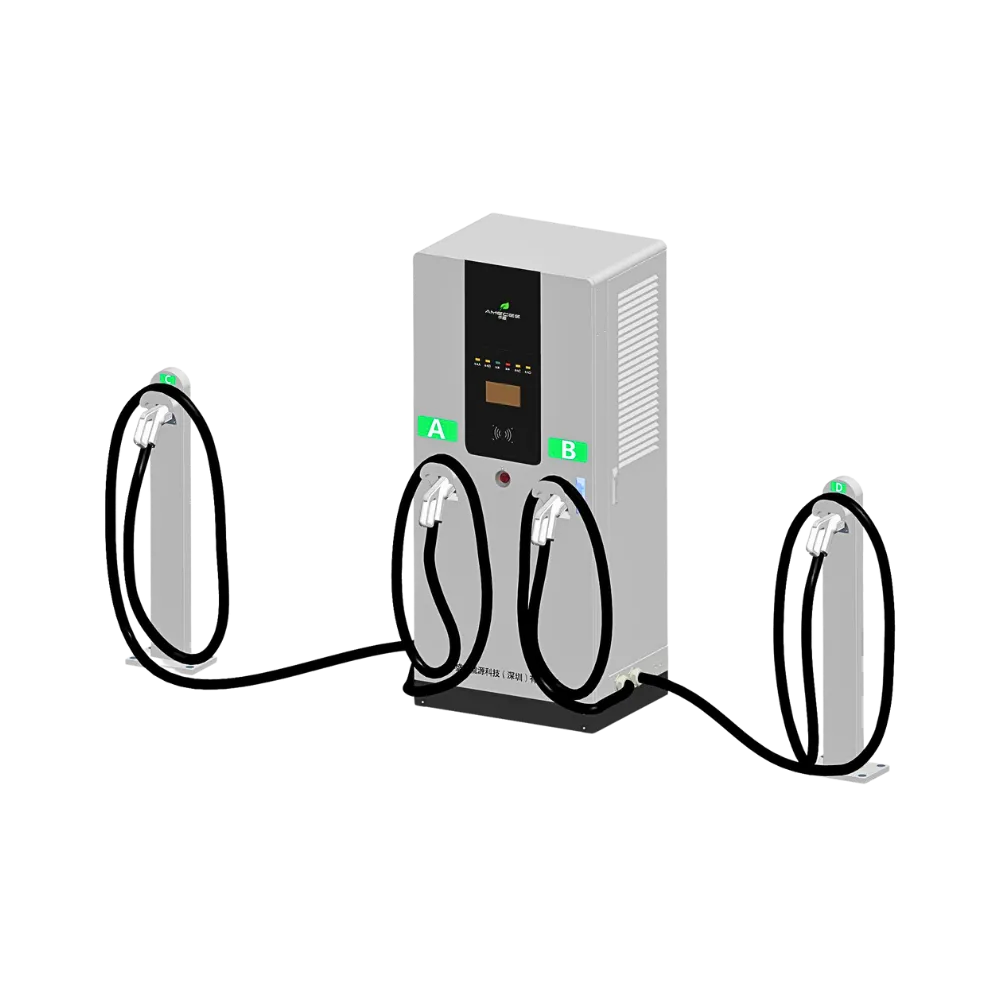

Split DC Super Fast Charging 240KW/320KW
CCS2

Split DC Super Fast Charging 240KW/320KW

Efficient and stable DC fast-charging solution

Designed with a fully optimized architecture, this DC fast-charging system delivers not only high charging efficiency but also operational stability and an enhanced user experience. It supports a wide range of vehicles and charging standards while enabling remote management and flexible scheduling through an intelligent platform, greatly improving operational efficiency.

Its modular design allows rapid deployment and scalability across various scenarios, from city centers to highway hubs. For operators, it offers a complete charging solution that balances performance, compatibility, and cost efficiency.

Features

High power output Equipped with high-power power supply cabinet, upgraded with liquid cooling, super-fast charging, greatly shorten the charging time.

Superior charging experience The power cabinet is placed independently rom the charging area, which greatly reduces noise pollution.

Easy installation The charging terminal is compact and easy to install Multi-standard charging port combination CCS2, CHAdeMO, GB/T, CCS1 can be combined and customized High voltage output ranges from 200V-1000V Any car-wide voltage.

Intelligent operation We can compatible with various OCPP platform.

Backstage monitoring Real-time monitoring of the EV Charging status.

Load balancing More effective connection to loading balancing.

Parameters

Specification
ModelHS_FSDC_240HS_FSDC_320
Electrical Properties
AC InputInput RatingAC 400V±15% 3phAC 400V±15% 3ph
AC Input connection3P+N+PE3P+N+PE
AC Input Current3Ф400A3Ф500A
Frequency50/60Hz50/60Hz
Power Factor≥0.99≥0.99
Efficiency≥95%≥95%
DC OutputOutput Voltage RangeDC200-1000VDC200-1000V
Max.Output Current250A(system)250A(system)
Max.Output PowerDC240KWDC320KW
Voltage Accuracy≤±0.5%≤±0.5%
Current Accuracy≤±1%≤±1%
User Interfact & Control
Emergency Stop ButtomYes
Display10” LCD Touch Screen
User AuthenticationRFID, OCPP, QR Code, Passport, Application
Support LanguageEnglish or other languages are available upon request
Communication
ExternalEthernet, Wifi
InternalCAN, RS485, RS232
Environmental
Operating Temperature-30 ℃ ~ +50 ℃
Humidity<95% relative humidity, non-condensing
Altitude≤2000m(6000 feet)
Mechanical
Ingress ProtectionIP54
Enclosure ProtectionIK10
CoolingAir Forced
Installation MethodFloor-Mounted
ProtectionOver current, Under Voltage, Over Voltage, Residual Current, Surge Protection,Short Circuit, Over Temperature, Ground Fault
Network Gateway4G
Payment MethodSCAN, POS Machine
Packing Details
Product Dimension700 * 1700 * 530mm700 * 1700 * 530mm
Product Weight260kg280kg
